ArgosLib.lvlib:Config_Motor.ctl

Connector Pane

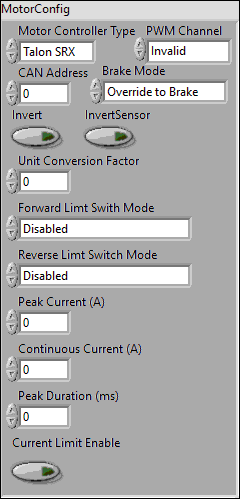

Front Panel

Controls and Indicators

CAN Address

Invert

InvertSensor

Unit Conversion Factor

Brake Mode

Reverse Limt Switch Mode

Forward Limt Swith Mode

PWM Channel PWM Channel specifies the channel you want to use for the motor controller. Select a value from PWM 0 to PWM 9 or from PWM MXP 0 to PWM MXP 9. The default is PWM 0. If PWM Channel is Invalid, this VI returns an error.

Motor Controller Type

Peak Current (A)

Continuous Current (A)

Peak Duration (ms)

Current Limit Enable

List of SubVIs and Express VIs with Configuration Information

VI Revision History

"ArgosLib.lvlib:Config_Motor.ctl History"

Current Revision: 14

Position in Hierarchy

Iconified Cluster Constants
