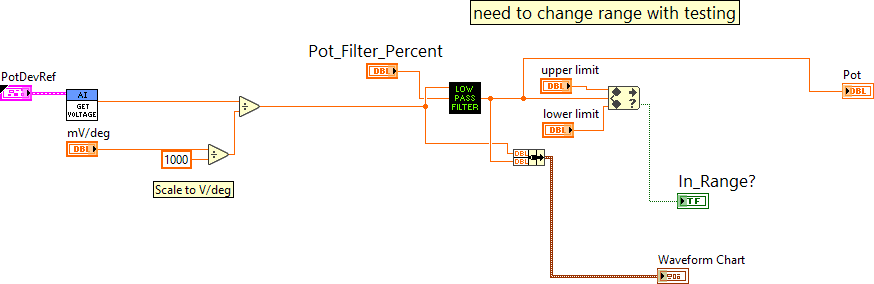

PotDevRef AIDeviceRef specifies a reference to the analog input channel you want to use. |
|
|
DevStatus |
|
|
status status is TRUE (X) if an error occurred or FALSE (checkmark) to indicate a warning or that no error occurred. Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error. |
|
|
code code is the error or warning code. Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error. |
|
|
source source describes the origin of the error or warning. Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error. |
|
|
Analog Channel |
|
|
mV/deg |
|
|
Pot_Filter_Percent |
|
|
upper limit |
|
|
lower limit |
|
|
Pot Normalized Value returns a value within the range of 0 to 1. |
|
|
In_Range? |
|
|
Waveform Chart |
"ArgosLib.lvlib:PotRead.vi History"
Current Revision: 20
