ArgosLib.lvlib:DIOLEDUpdate.vi

Connector Pane

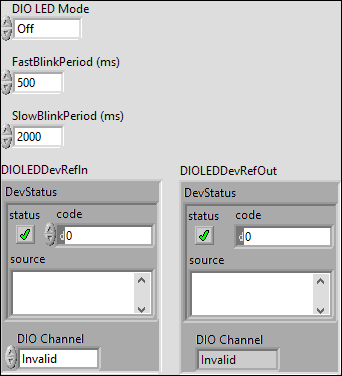

Front Panel

ArgosLib.lvlib:DIOLEDUpdate.vi

Controls and Indicators

cenum

DIO LED Mode

cu16

FastBlinkPeriod (ms)

cu16

SlowBlinkPeriod (ms)

ccclst

DIOLEDDevRefIn

DigitalOutputDevRef specifies a reference to the digital output you want to use.

cenum

DIO Channel

cerrcodeclst

DevStatus

error in can accept error information wired from VIs previously called. Use this information to decide if any functionality should be bypassed in the event of errors from other VIs.

Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.

cbool

status

status is TRUE (X) if an error occurred or FALSE (checkmark) to indicate a warning or that no error occurred.

Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.

ci32

code

code is the error or warning code.

Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.

cstr

source

source describes the origin of the error or warning.

Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.

icclst

DIOLEDDevRefOut

DigitalOutputDevRef returns a reference to the digital output.

ienum

DIO Channel

ierrcodeclst

DevStatus

error in can accept error information wired from VIs previously called. Use this information to decide if any functionality should be bypassed in the event of errors from other VIs.

Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.

ibool

status

status is TRUE (X) if an error occurred or FALSE (checkmark) to indicate a warning or that no error occurred.

Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.

ii32

code

code is the error or warning code.

Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.

istr

source

source describes the origin of the error or warning.

Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.
