ArmDontScrapeCargoHoop.vi
Connector Pane

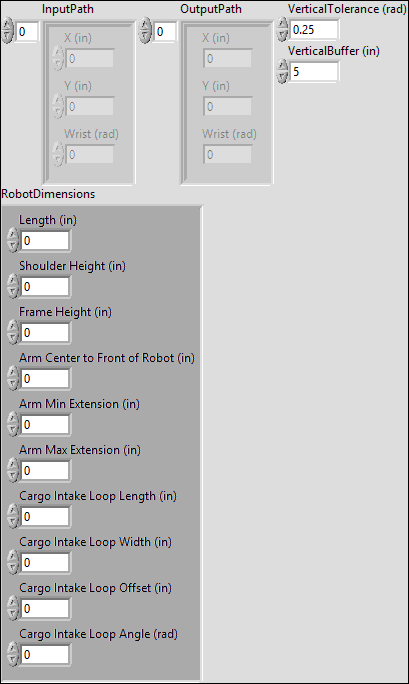

Front Panel
Controls and Indicators
|
InputPath |
|
StartPoint |
|
X (in) |
|
Y (in) |
|
Wrist (rad) |
|
RobotDimensions |
|
Length (in) |
|
Shoulder Height (in) |
|
Frame Height (in) |
|
Arm Center to Front of Robot (in) |
|
Arm Min Extension (in) |
|
Arm Max Extension (in) |
|
Cargo Intake Loop Length (in) |
|
Cargo Intake Loop Width (in) |
|
Cargo Intake Loop Offset (in) |
|
Cargo Intake Loop Angle (rad) |
|
VerticalTolerance (rad) |
|
VerticalBuffer (in) |
|
OutputPath |
|
StartPoint |
|
X (in) |
|
Y (in) |
|
Wrist (rad) |

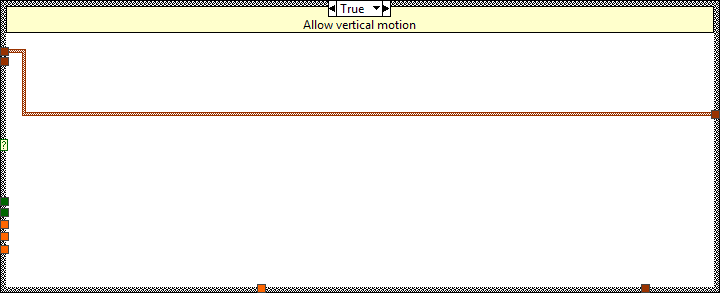

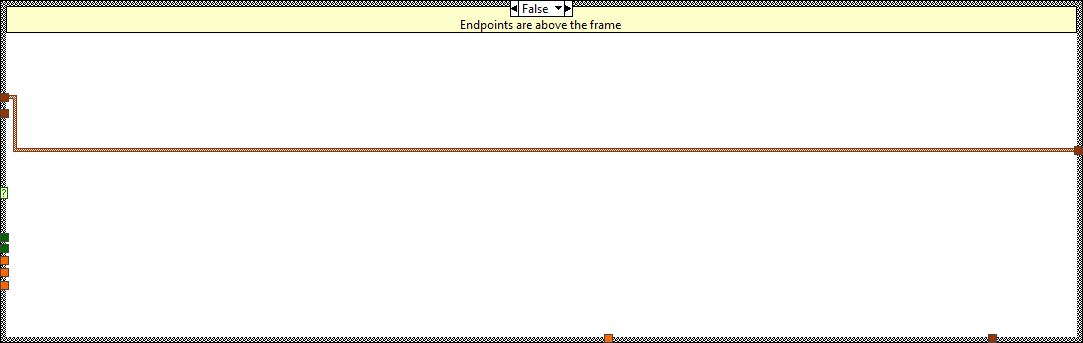

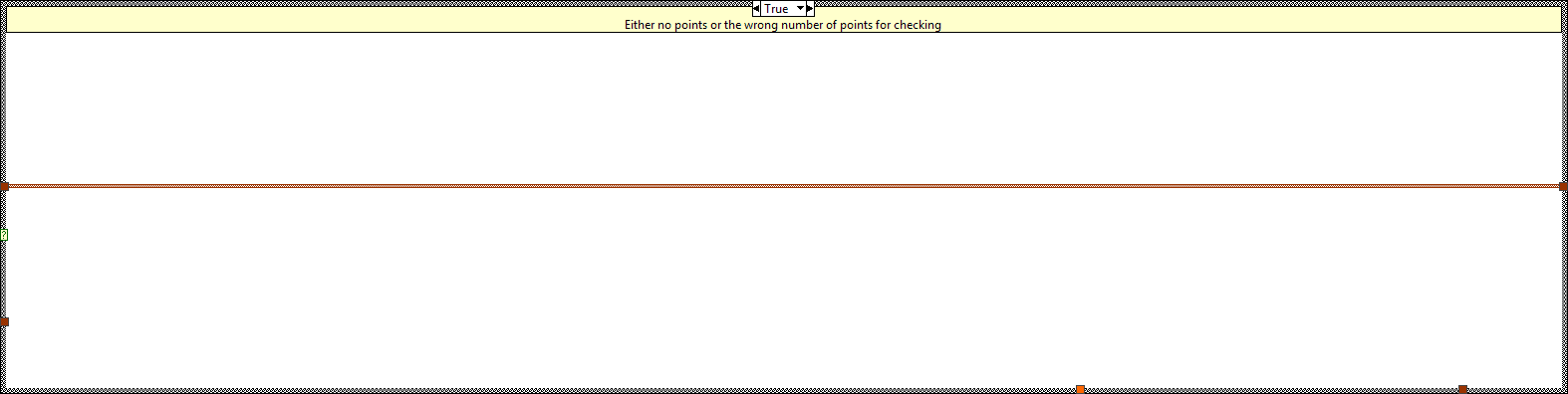

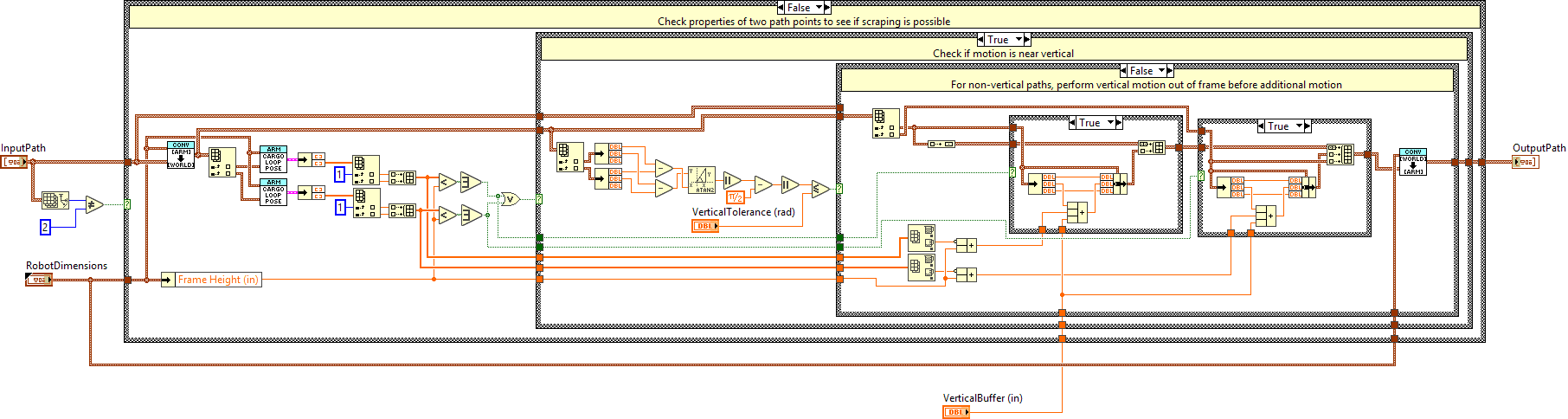

Block Diagram
List of SubVIs and Express VIs with Configuration Information
VI Revision History
"ArmDontScrapeCargoHoop.vi History"
Current Revision: 11
Position in Hierarchy
Iconified Cluster Constants
