ArgosLib.lvlib:Shifters.vi

Connector Pane

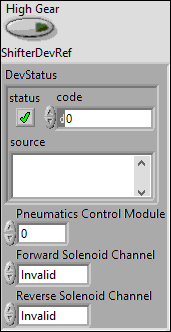

Front Panel

Controls and Indicators

DevStatus error in can accept error information wired from VIs previously called. Use this information to decide if any functionality should be bypassed in the event of errors from other VIs. Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.

status status is TRUE (X) if an error occurred or FALSE (checkmark) to indicate a warning or that no error occurred. Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.

code code is the error or warning code. Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.

source source describes the origin of the error or warning. Right-click the error in control on the front panel and select Explain Error or Explain Warning from the shortcut menu for more information about the error.

Pneumatics Control Module

Forward Solenoid Channel

Reverse Solenoid Channel

Block Diagram

List of SubVIs and Express VIs with Configuration Information

VI Revision History

"ArgosLib.lvlib:Shifters.vi History"

Current Revision: 6

Position in Hierarchy

Iconified Cluster Constants
